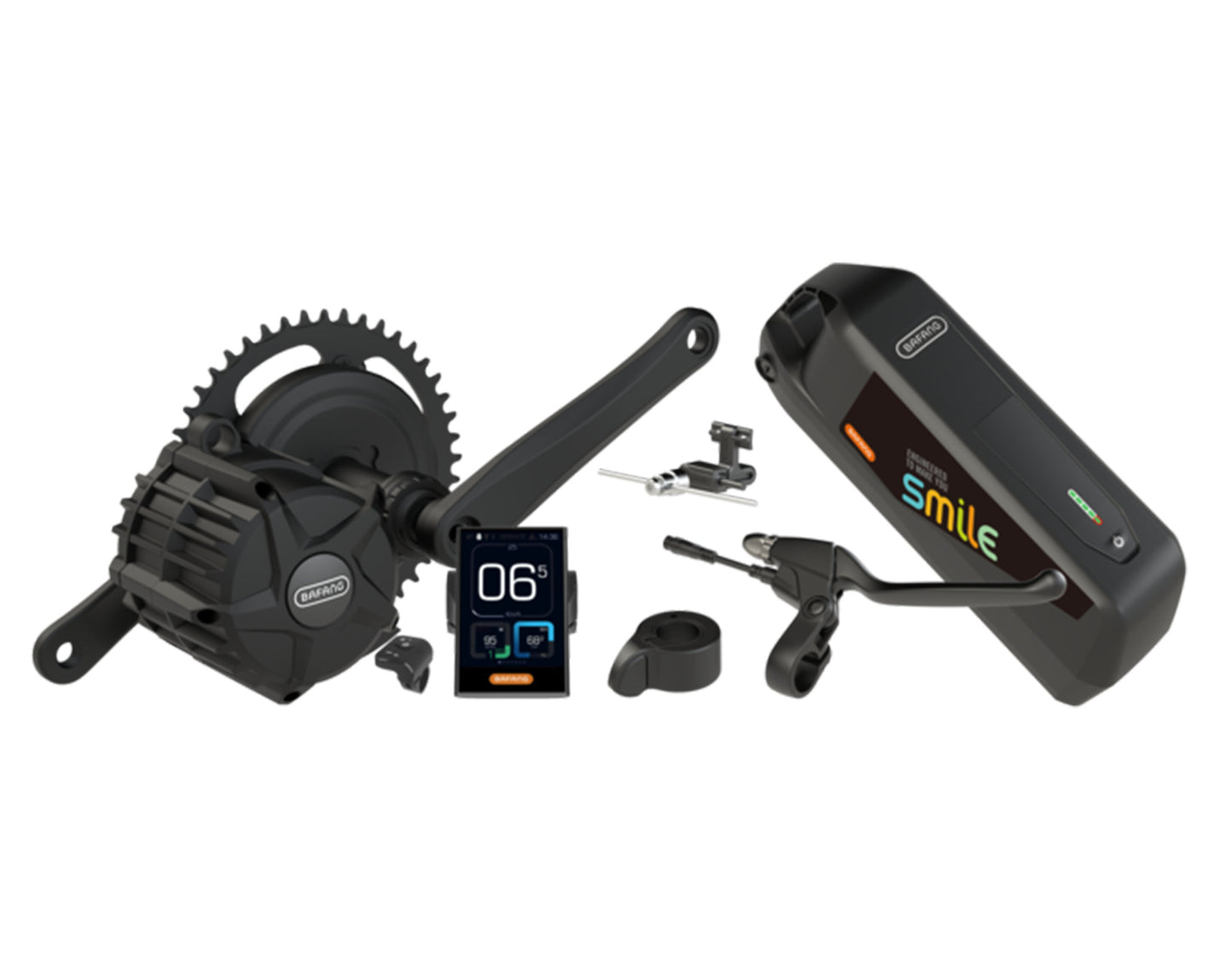

Dillenger has secured a limited number of the brand new heavy duty mid-drive kits from Bafang. These kits come with customised battery and charger sets. There are no configurable elements yet for this new design, so we hope you like what you see here!
We have spec'd the highest power/torque/battery capacity possible.
We recommend our mid-drive tool kit if you require bottom bracket and BBS tools.
For full specs, we have uploaded all the Bafang documentation to our manuals page.

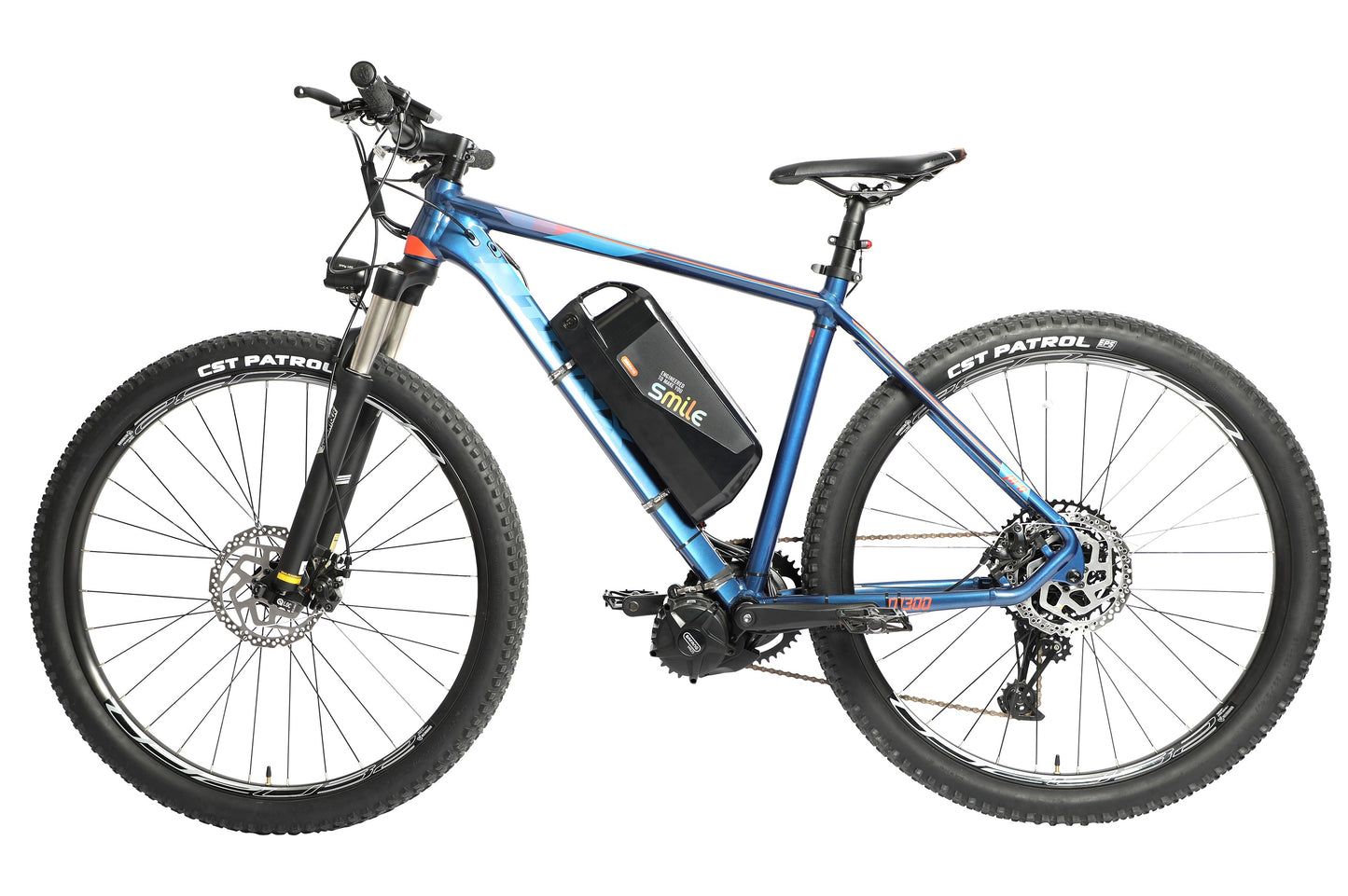

|Type||Mid-drive conversion kit|
|Intended Usage||Recreation, off-road|
Up to 50km/h / 30mph (depending on gearing)
|Max Speed||Depending on conditions and gearing|
|Throttle Type||Thumb throttle|
|Pedal Assist Levels||TBA
|Wiring Type||EB-BUS waterproof cable set|
|Max Rider Weight||120kg|

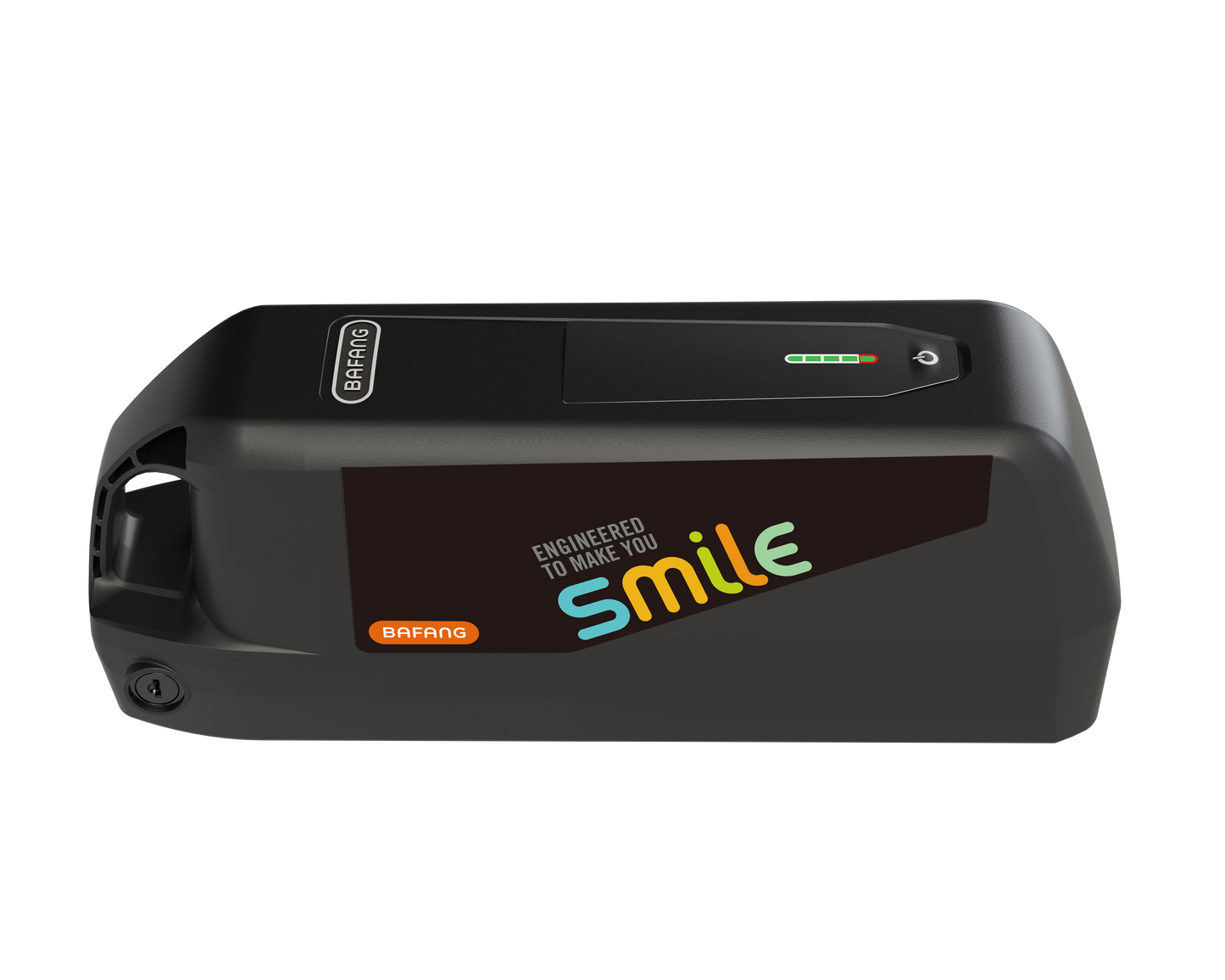

|Nominal Battery Voltage||50.4V|
|Fully Charged Voltage||58.8V|
|Nominal Battery Energy||988Wh

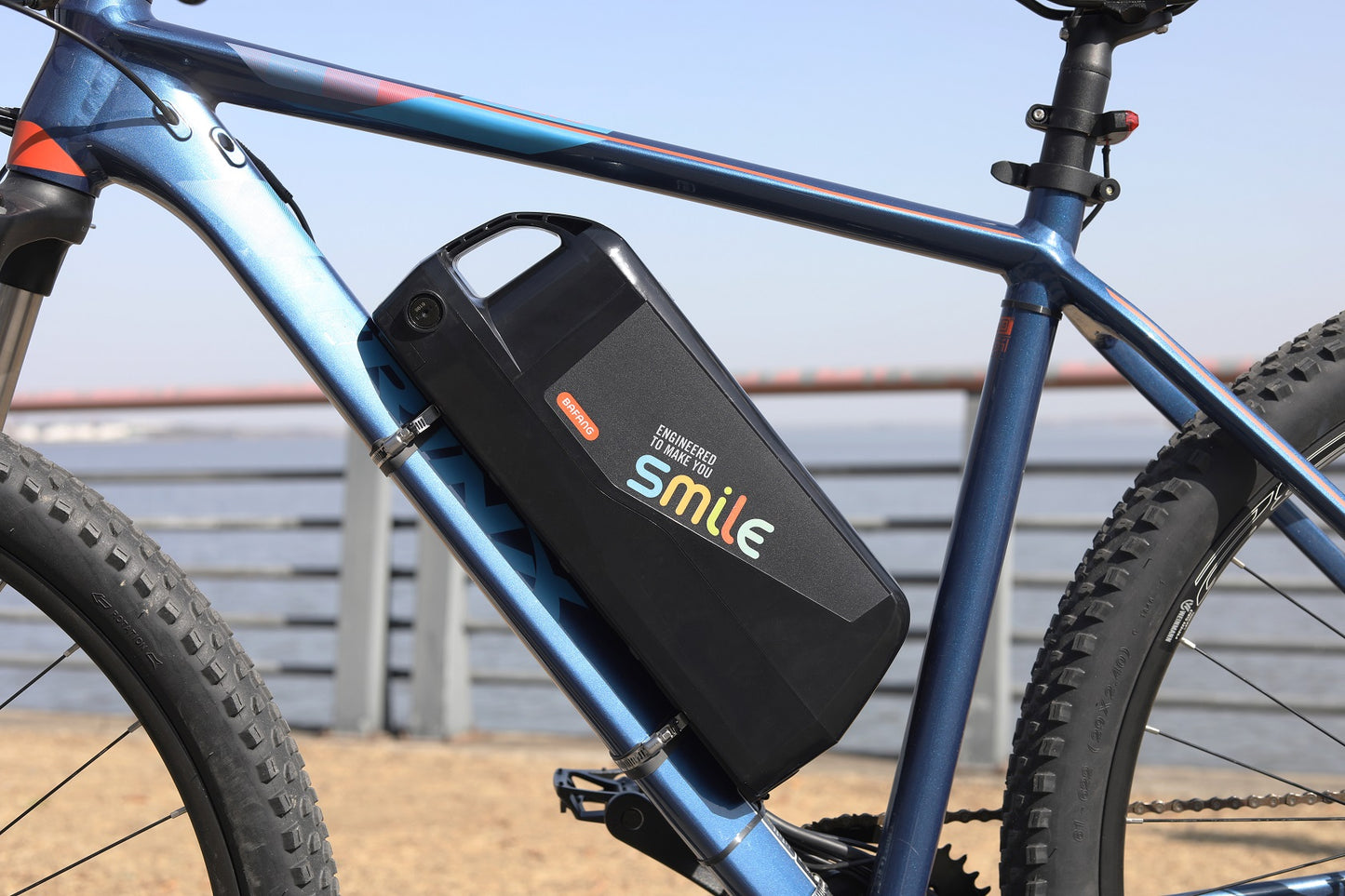

|Battery Removable||With locking mechanism|
|Battery Cell Type||21700 Samsung|
|Cell Spec||Dependant on selection|
|Cell Management||Built-in BMS|
|Other Features||5V USB output for charging, controller/cradle included|
|Maximum Battery Charger Cycles||1000 full cycles|
|Battery Charger Type||Bafang 4A
|Battery Charge Time||5 hours approx.
|Max Motor Power||1,620W peak|

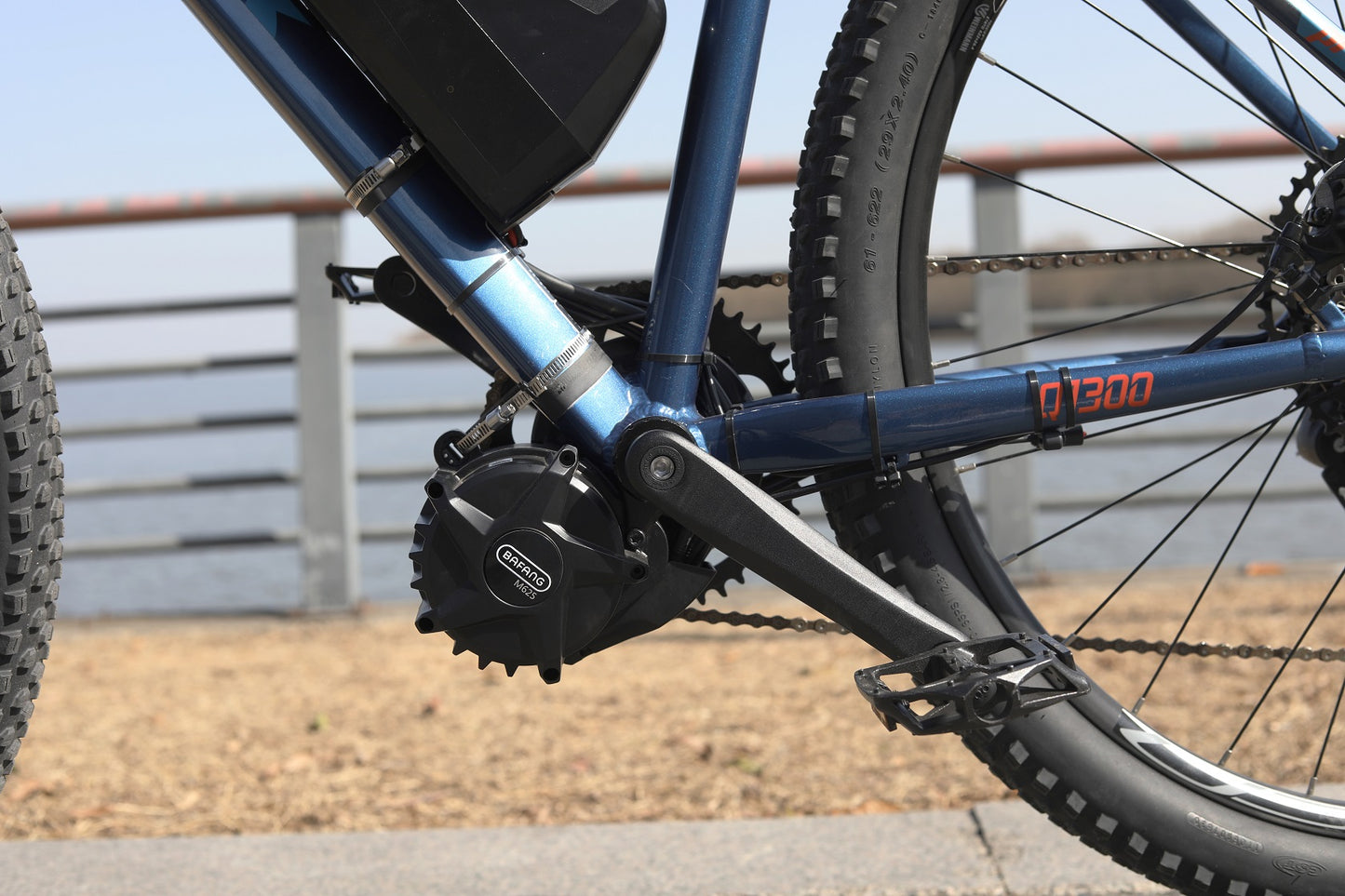

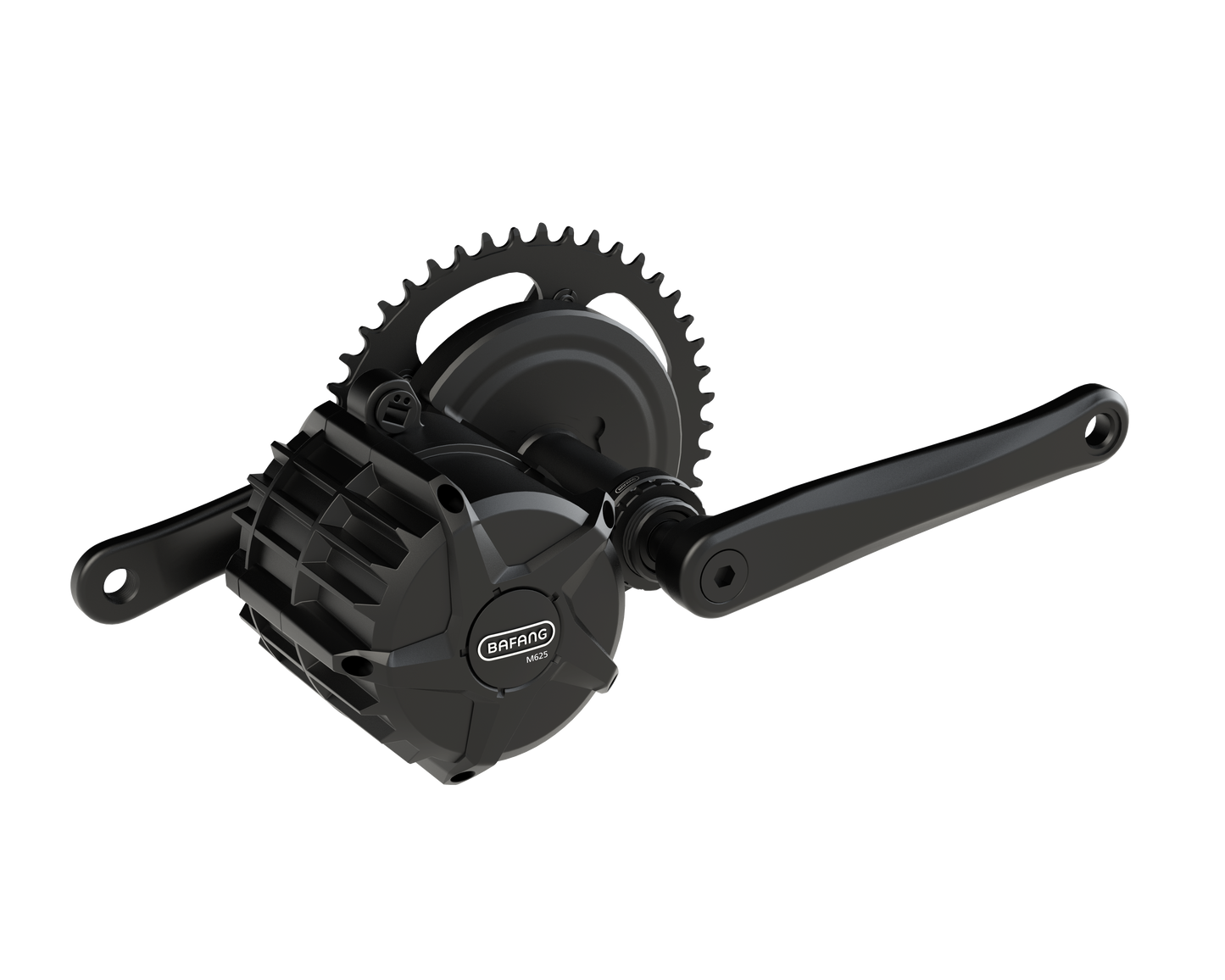

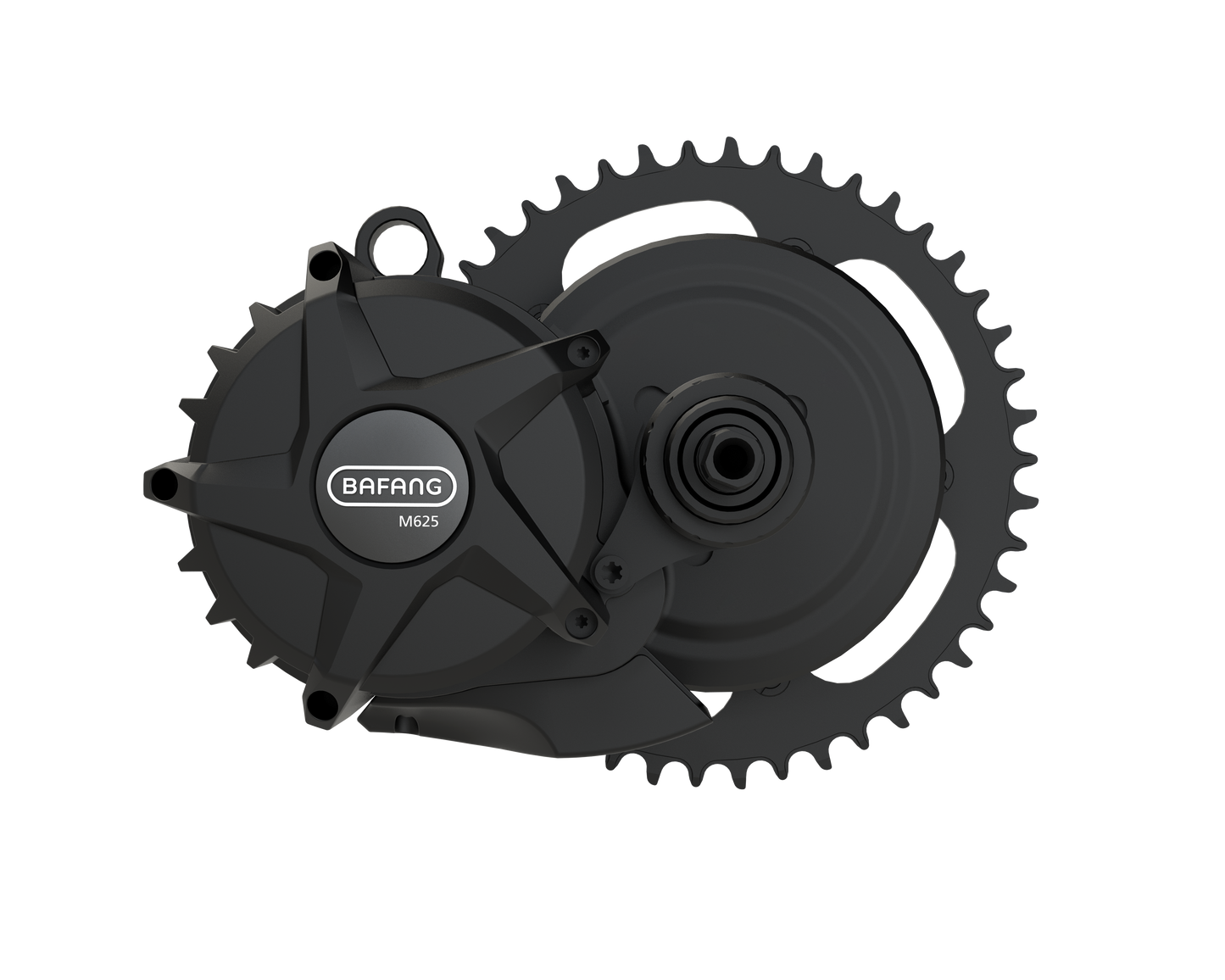

|Drive Type||Bottom bracket mid-drive motor with gear reduction|
|Motor Sensors||Hall Sensor|
For specs, please see the manual page.
